Iron art twisting machine
- Pricing method：： set
- Brand：： 鐵藝之友
Release date：2025-01-13
Iron art twisting machine,Provide quotations for various iron art gates and offer professional services to enterprises related to iron art.

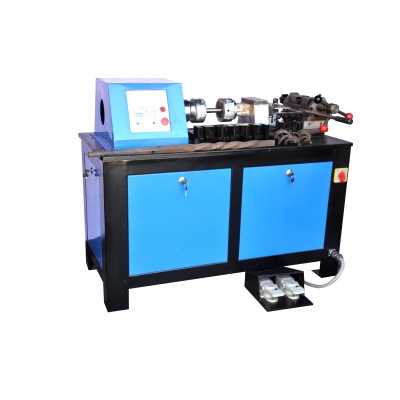

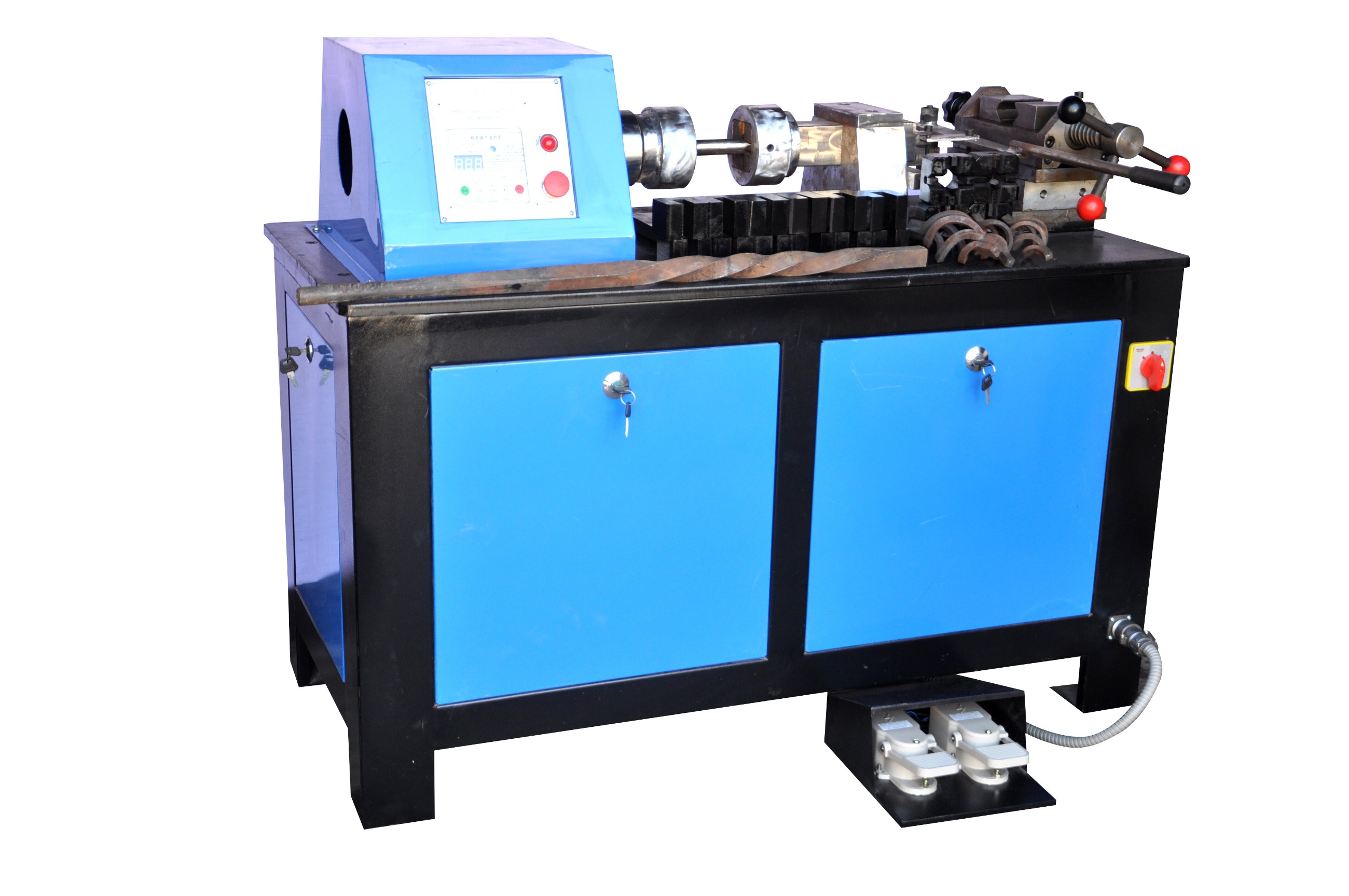

TDL-25 Basket Shaping & Twisting Machine
TDL-25 basket shaping & twisting machine is an optimized allocation integrated with mechanical and electronic numerical control and hydraumatic, filling with hydraulic feeding system on the basis of mechatronics. It can manufacture different lanterns(birdcage, basket shapes) for square steel 6×6、8×8、10×10(mm) (4 pieces, 8pieces); it can also twist square steel 10-25mm and flat steel 8×30(mm). It is a new-type of dual purpose wrought iron machine for basket shaping and twisting.
This machine can not only improve the working efficiency and reduce the labour intensity, but also save investment. It’s a preferred equipment in the fields of wrought iron, architectural ornament and steel furniture.
Items | TDL-25 Basket Shaping &Twisting Machine | |
Max Sizes of twisting materials | Flat Steel | ≤40×8 |
Square Steel | ≤25×25 | |
The size of basket shaping | Round Steel | ?6×168 ?8×188 ?10×220 |
Square Steel | 6×6×168 8×8×188 10×10×220 | |
Motor | Power | 1.5KW×2 |
Electricity | 380V 50HZ | |
Packing Size(L×W×H)(mm) | 1660×690×1340 | |
Weight(kg) | 480/560kg | |
